Building Material Hardware Precast Concrete Lifting System
Description
Basic Info.
| Model NO. | Building Hardware |
| HS Code | 8302410000 |
| Production Capacity | 50000 Pieces Per Month |
Product Description
Product Description

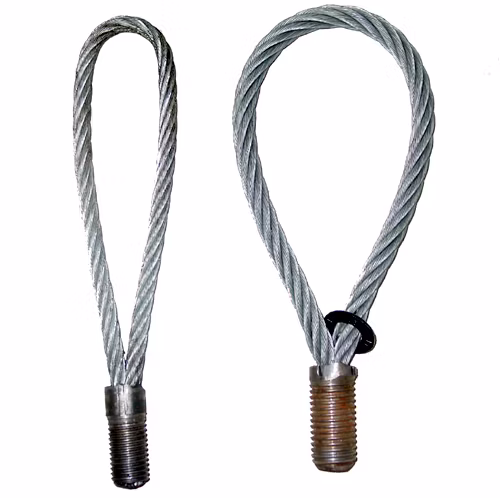

| Product Name | Precast Concrete Lifting System - Threaded Loop | |
| Place of Origin | China | |
| Condition | New | |
| Technical Date | Material | Stainless Steel, Alloy Steel |
| Thread | M12, M16, M20, M24, M30, M36, M42, M52 | |
| SWL (kg) | 500 - 12500 | |
| Overall Height (mm) | 155 - 550 | |
| Wire Rope Dia. (mm) | 6 - 26 | |
| Load Capacity | Various depending on application | |
Test | Material Certificate | |
| Breaking Strength Test | ||
| Certificates | with CE&ISO 9001 | |
| Advantage | More Than 18 Years Experience | |
| Designed Safe, Quick, Efficient | ||
| Professional Inspectors, Make Tension Test Before Shipping | ||
| Customer Complaints Less Than 1% | ||
| Application | By using lifting loop type THS or the lifting swivel THH and with use of reinforcing tail and reinforcing steel Lifting loop THS, threaded lifting loops can be used with all sizes of threaded inserts. Lifting under an angle >45o is not allowed Threaded lifting loops are manufactured from high grade steel wire, swaged in a steel ferrule and finished with zinc plating. They are clearly marked with their SWL. The thread type is RD/M, which is compatible with both metric and Rd inserts. | |
| Relevant Products | Lifting loop, lifting swivel, reinforcing steel, reinforcing tail | |
Our Advantages
More than 18 years manufacturing and exporting experience, 8 years focus on building material manufacturing
Prompt Delivery time within 25days after confirming order
Eathu's products are enhanced by the factory QA and Quality Control checks during the production. If necessary each order can be send out with a certificate referring back to test.
Precast concrete elements may be lifted several times after casting and during storage and erection-by using this system the designer and the worker manager ensure that each lift is carried out safely and quickly. Failure to use a designed and co-ordinated system could result in material breakage at some point during the production/delivery process.
OEM/ODM Capability: Eathu has more then 10 years experience for the OEM/ODM products, more than 150 cooperation factory, we can provide you competitive price and steady quality.
Company Profile
Eathu Metals Co.,Ltd is part of Eathu group, which is one of the biggest manufacturers and exporters of OEM metal products, pipeline products and construction hardware products in China.
All our factories are certified to the international ISO-9001 quality system standard and all products are carefully tested to meet the strict quality requirements and industry standards prior to each shipment. Parts of our products have been tested, listed, approved by some predominant labs and bodies, such as US (USA), FM (USA), NSF (USA), CUL (Canada), CSA (Canada), KS (Korea), DVGW (Germany), TUV (Germany, TSE (Turkey), PSB (Singapore), JIS (Japan) and BSI (England).
To concentrate upon casting & forging products, create constantly and exert our own advantage in this field; to supply competitive and reasonable at price, acceptable and stable in quality, professional service ; to full meet and strive to exceed the expectations of our customer, is our business philosophy.
